PVC blue casing, the blue PVC casing, blue hose

  • PVC blue casing, the blue PVC casing, blue hose
  • PVC blue casing, the blue PVC casing, blue hose
  • PVC blue casing, the blue PVC casing, blue hose
  • PVC blue casing, the blue PVC casing, blue hose
Model No.︰qx-20111018006
Brand Name︰quanxin
Country of Origin︰China
Unit Price︰CNY ¥ 2000 / pc
Minimum Order︰1 pc
Share on:

 Total 30 Related Items
Prev1920212223Next

Product Description
PVCTUBE
General Purpose insulating non-faammable tube, are suitable for insulation purpose of terminal lugs, small electrical parts, lead wires of terminal lugs, and transformers etc, product can meet UL 224 105 standard.
 Specification
 Size
No.
(mm)Inside Diameter
(mm)
Wall-thickness
(mm)
Wall-thickness range
5/8
15.9
0.7
±0.18
9/16
14.3
0.7
±0.15
1/22
12.7
0.57
±0.15
7/16
11.1
0.57
±0.15
3/8
9.53
0.57
±0.15
5/16
7.92
0.57
±0.15
0#
8.38
0.45
±0.15
1#
7.47
0.45
±0.15
2#
6.68
0.45
±0.15
3#
5.94
0.45
±0.15
4#
5.28
0.45
±0.15
5#
4.72
0.45
±0.15
6#
4.22
0.45
±0.15
7#
3.76
0.45
±0.15
8#
3.38
0.45
±0.15
9#
3.00
0.45
±0.15
10#
2.69
0.35
±0.15
11#
2.41
0.35
±0.1
12#
2.16
0.35
±0.1
13#
1.93
0.35
±0.1
14#
1.68
0.35
±0.1
15#
1.50
0.35
±0.1
16#
1.34
0.35
±0.1
17#
1.19
0.35
±0.1
18#
1.07
0.35
±0.1
19#
0.96
0.35
±0.1
20#
0.86
0.35
±0.1
21#
0.79
0.35
±0.1
(NOTE) Inside Diameter ±5%

Payment Terms︰tt

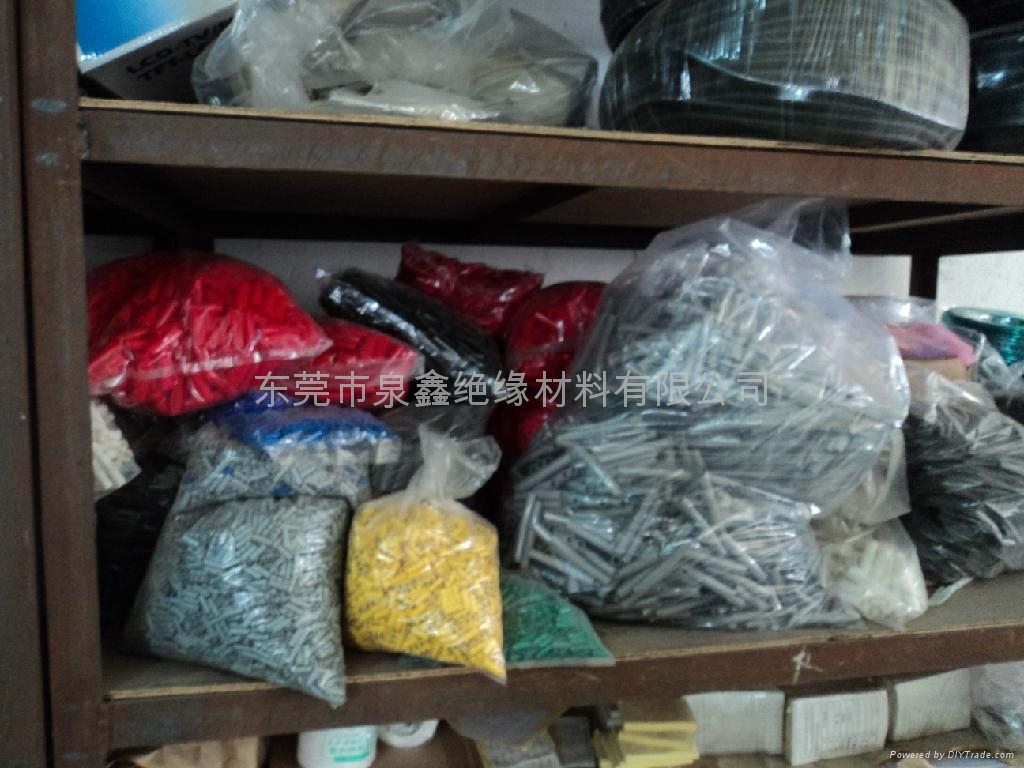

Product Image
