Model No.︰ID1-35MM
Brand Name︰quanxin
Country of Origin︰China
Unit Price︰CNY ¥ 0.35 / M
Minimum Order︰5000 M
Share on:

 Total 30 Related Items
Prev89101112Next

Product Description

 Size



No. (mm)Inside Diameter

(mm)
Wall-thickness

(mm)
Wall-thickness range
5/8 15.9 0.7 ±0.18
9/16 14.3 0.7 ±0.15
1/22 12.7 0.57 ±0.15
7/16 11.1 0.57 ±0.15
3/8 9.53 0.57 ±0.15
5/16 7.92 0.57 ±0.15
0# 8.38 0.45 ±0.15
1# 7.47 0.45 ±0.15
2# 6.68 0.45 ±0.15
3# 5.94 0.45 ±0.15
4# 5.28 0.45 ±0.15
5# 4.72 0.45 ±0.15
6# 4.22 0.45 ±0.15
7# 3.76 0.45 ±0.15
8# 3.38 0.45 ±0.15
9# 3.00 0.45 ±0.15
10# 2.69 0.35 ±0.15
11# 2.41 0.35 ±0.1
12# 2.16 0.35 ±0.1
13# 1.93 0.35 ±0.1
14# 1.68 0.35 ±0.1
15# 1.50 0.35 ±0.1
16# 1.34 0.35 ±0.1
17# 1.19 0.35 ±0.1
18# 1.07 0.35 ±0.1
19# 0.96 0.35 ±0.1
20# 0.86 0.35 ±0.1
21# 0.79 0.35 ±0.1

(NOTE)Inside Diameter ±5%

Payment Terms︰TT

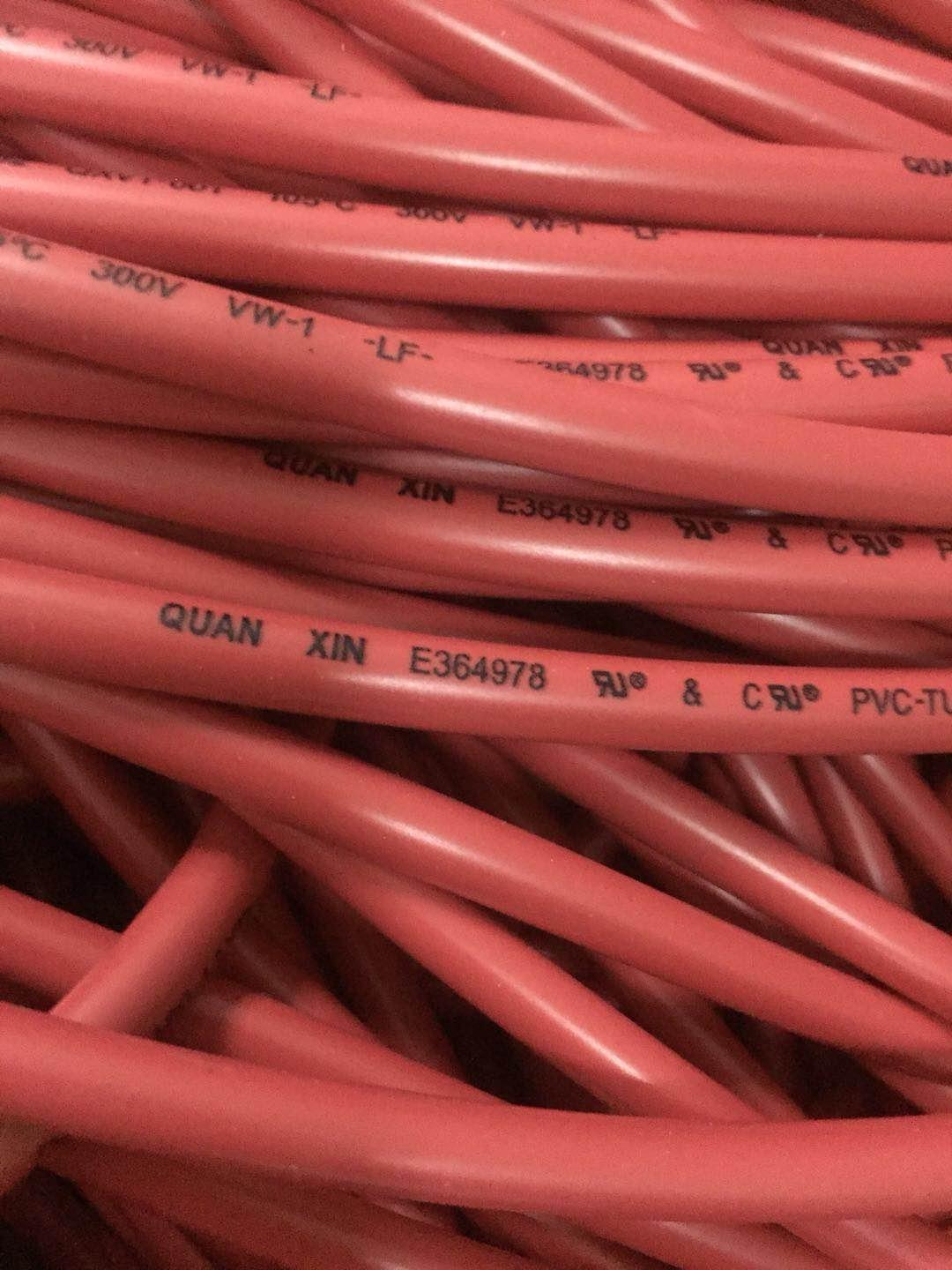

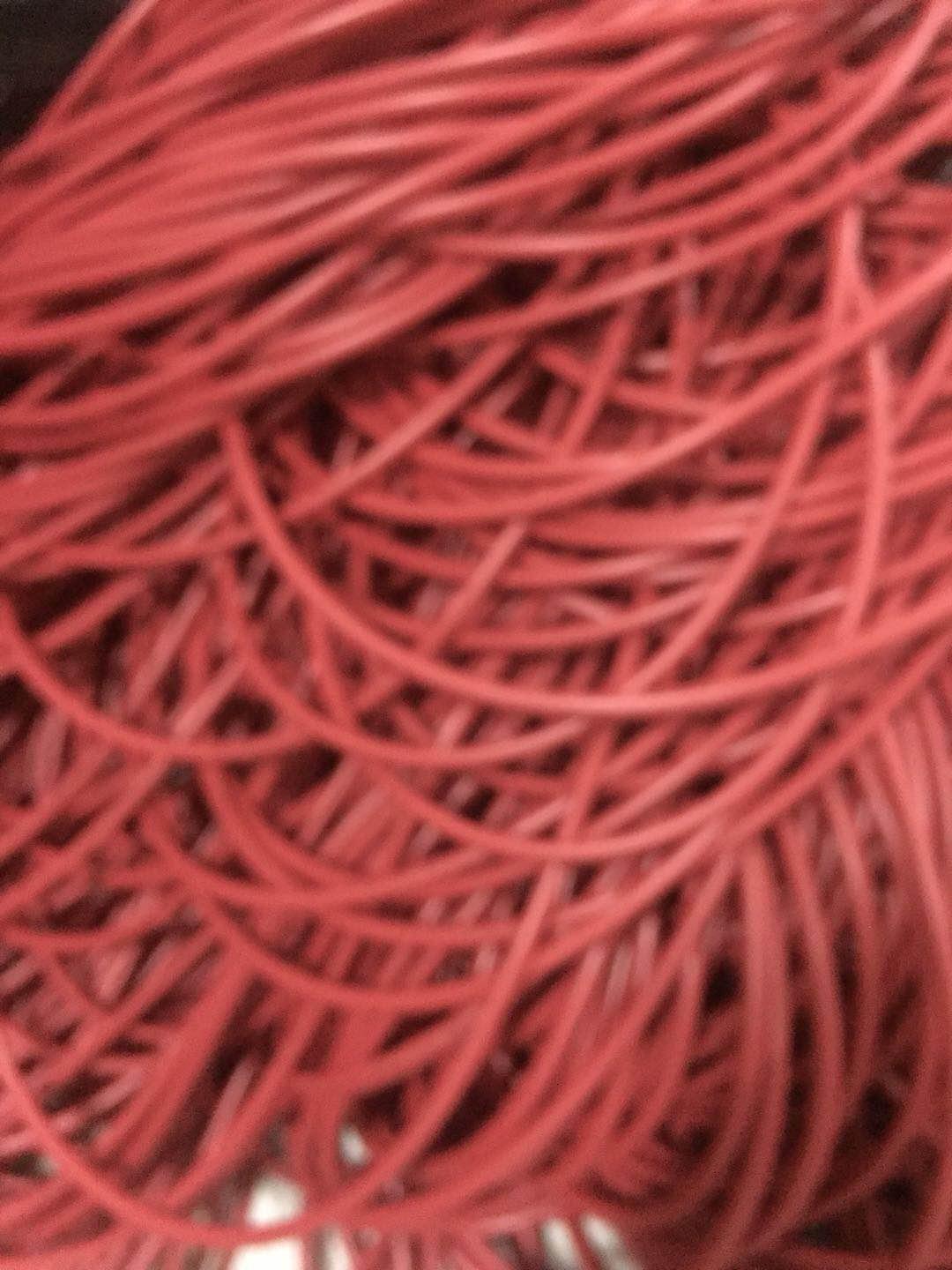

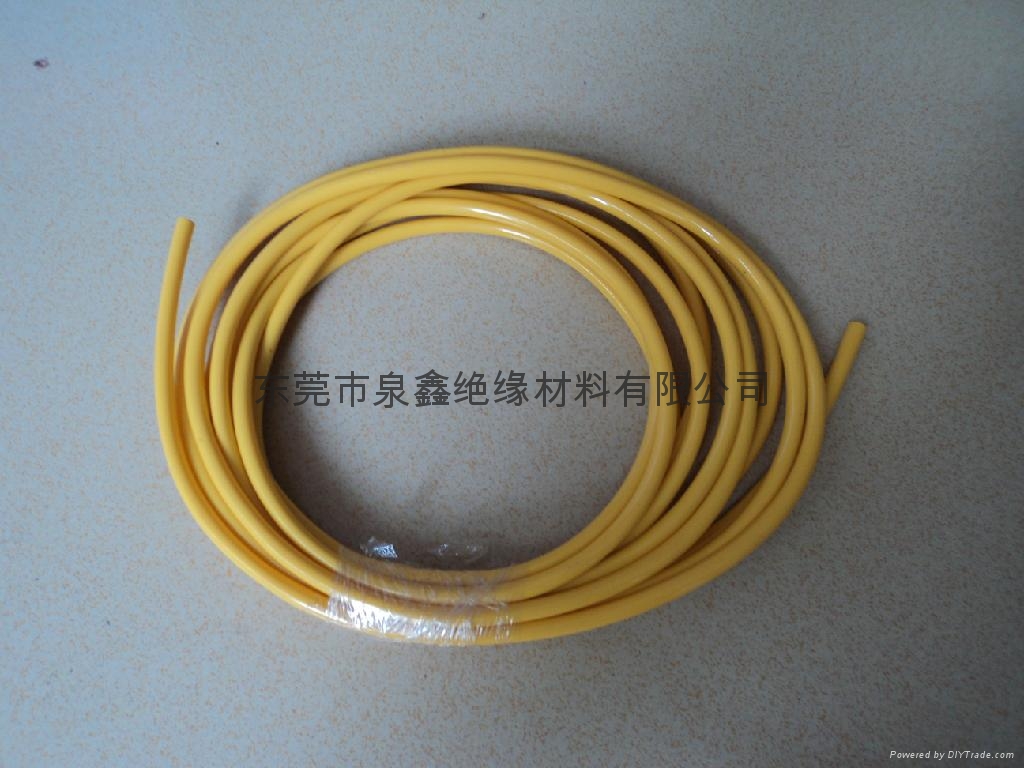

Product Image
