PVC TUBE

  • PVC TUBE
  • PVC TUBE
  • PVC TUBE
  • PVC TUBE
  • PVC TUBE
Model No.︰WD-02
Brand Name︰WONDERFUL
Country of Origin︰China
Unit Price︰CNY ¥ 2000 / pc
Minimum Order︰1 pc
Share on:

 Total 30 Related Items
Prev1314151617Next

Product Description
PVC does not shrink difficult to burn the casing is widely used in electric wire connectors, electronic parts, toys, motor and transformers wiring insulation protection in, accord with UL224 105 ℃ standards. Also can produce PP, PE, EVA, PC, PV and other material casing.

Specification
Item
Specification Requirements
(℃)Continnuous Operating Temperature
-40~105
(Mpe)Tensile Strength
≥10.4
(%)Ultimate Elongation
≥100
 Aging In Circulating Air Oven
(136.0±1.0)℃,7 days at 136.0±1.0℃
 After aging
(Mpe)Tensile Strength
≥7.28
(%)Ultimate Elongation
≥70
(V)Potential Rating
300V,600V
(Ω)Volume Resisivity
≥1010
(V)Dielecric Rating
≥2500(60S) ≥2500(60S), no breakdown
 Corrosion of Bare Copper
No corrosion
Head Shock
 No craking
Cold Bend
 No craking
 Maximum Longitudinal Change
±5%
 Size
No.inches
(mm)Inside Diameter
(mm)
Wall-thickness
(mm)
Wall-thickness range
5/8
15.9
0.7
±0.18
9/16
14.3
0.7
±0.15
1/22
12.7
0.57
±0.15
7/16
11.1
0.57
±0.15
3/8
9.53
0.57
±0.15
5/16
7.92
0.57
±0.15
0#
8.38
0.45
±0.15
1#
7.47
0.45
±0.15
2#
6.68
0.45
±0.15
3#
5.94
0.45
±0.15
4#
5.28
0.45
±0.15
5#
4.72
0.45
±0.15
6#
4.22
0.45
±0.15
7#
3.76
0.45
±0.15
8#
3.38
0.45
±0.15
9#
3.00
0.45
±0.15
10#
2.69
0.35
±0.15
11#
2.41
0.35
±0.1
12#
2.16
0.35
±0.1
13#
1.93
0.35
±0.1
14#
1.68
0.35
±0.1
15#
1.50
0.35
±0.1
16#
1.34
0.35
±0.1
17#
1.19
0.35
±0.1
18#
1.07
0.35
±0.1
19#
0.96
0.35
±0.1
20#
0.86
0.35
±0.1
21#
0.79
0.35
±0.1
(NOT) :Inside Diameter ±5%

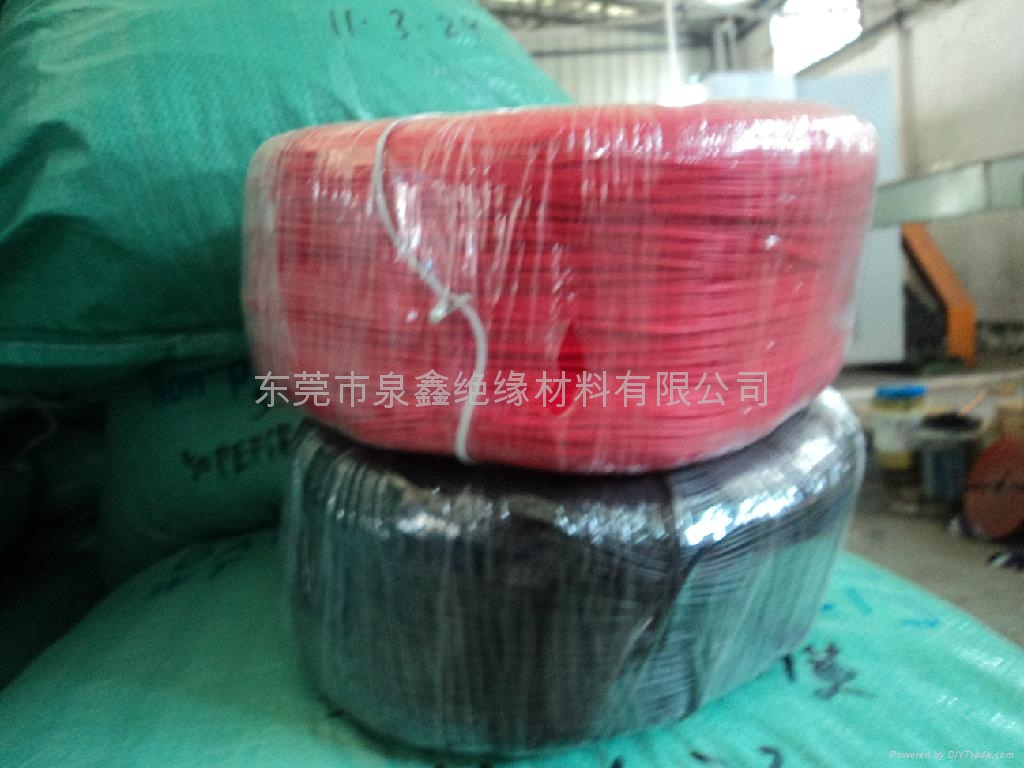

Product Image
